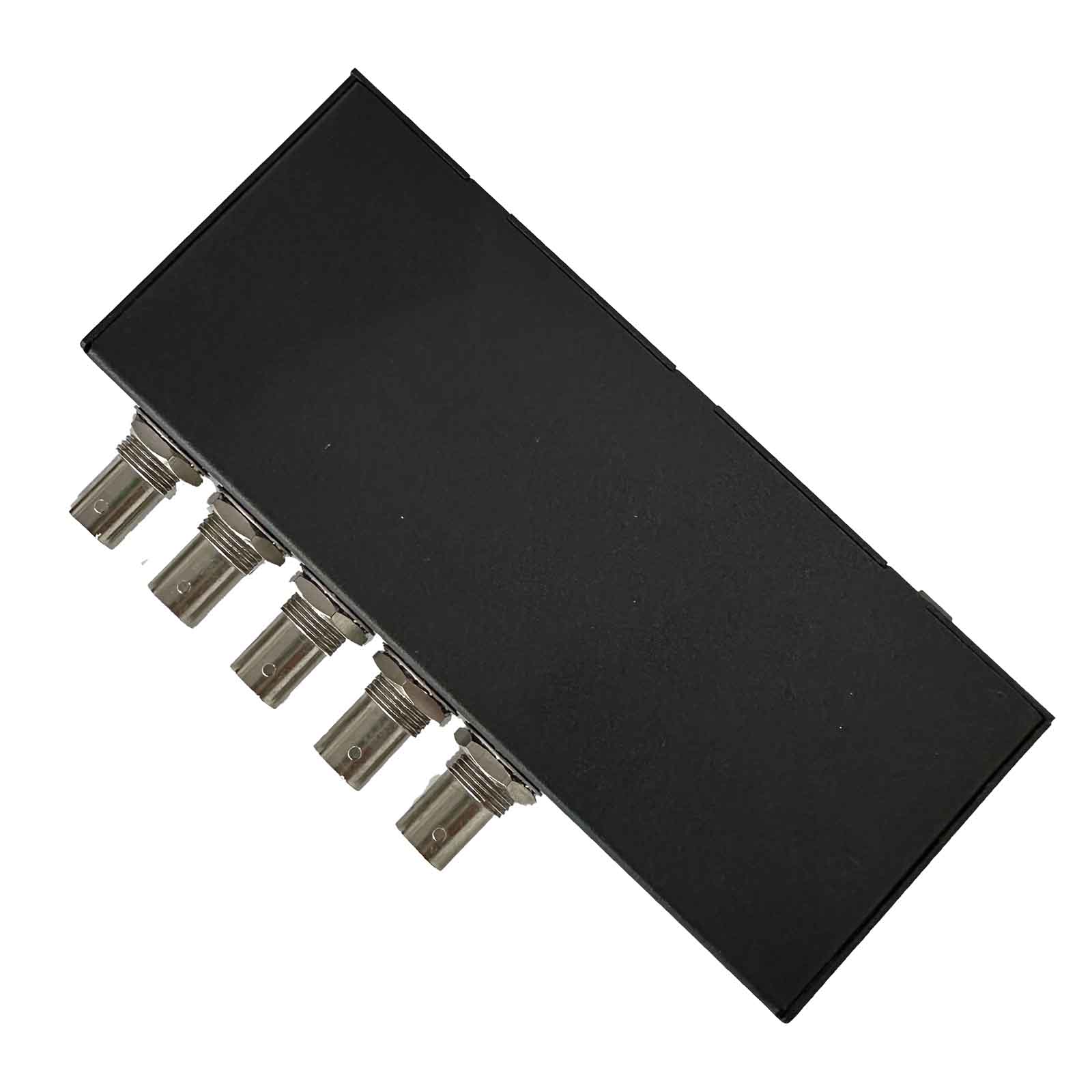

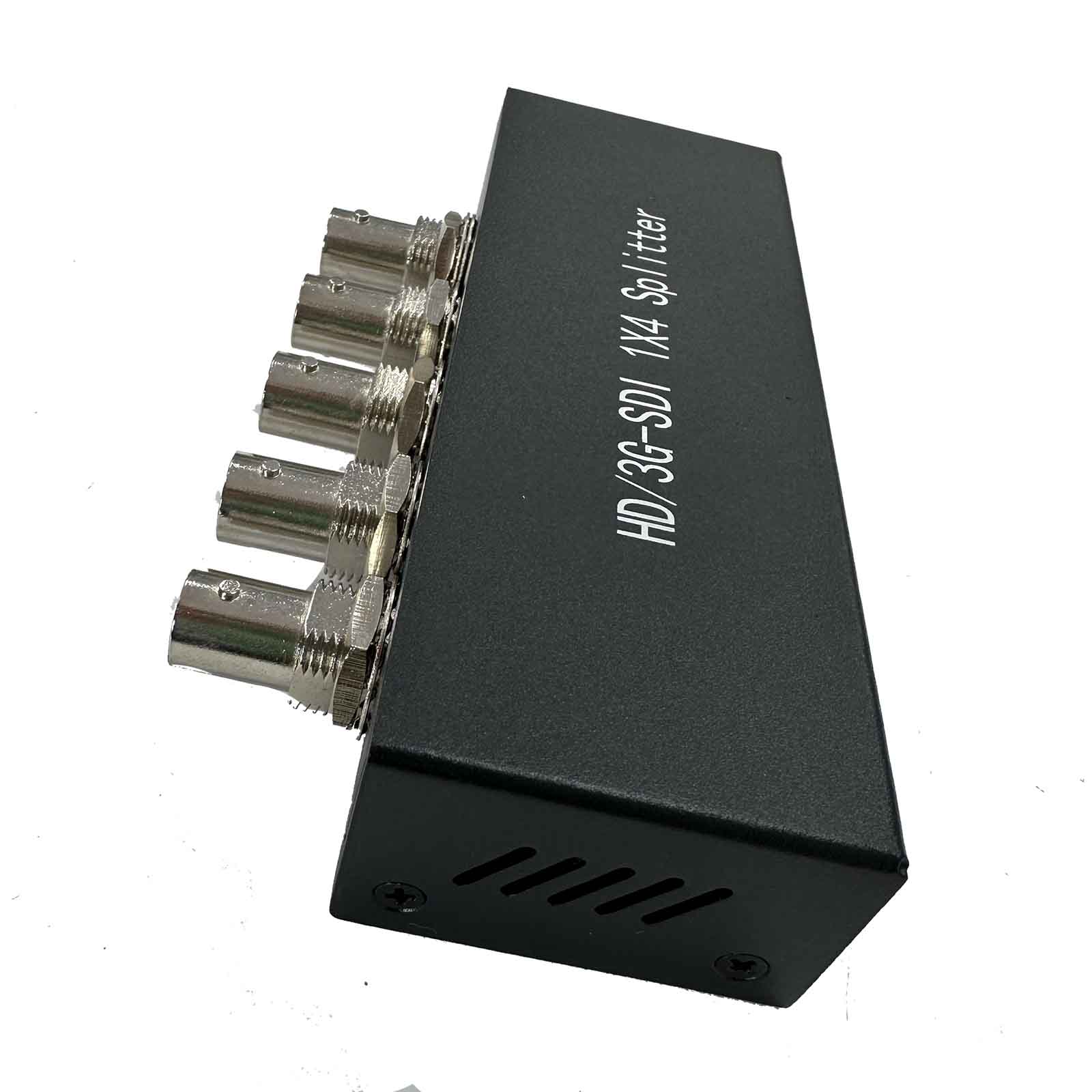

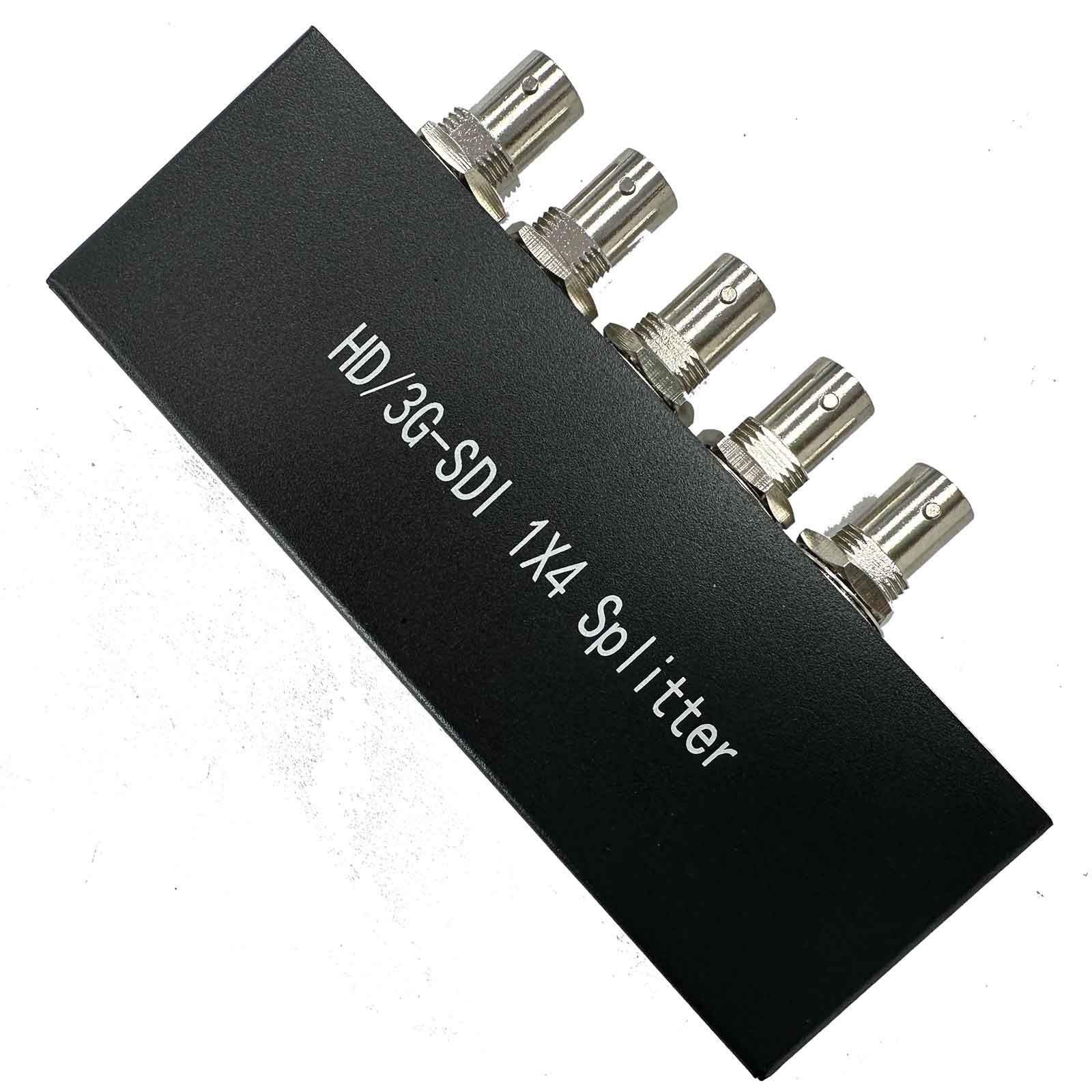

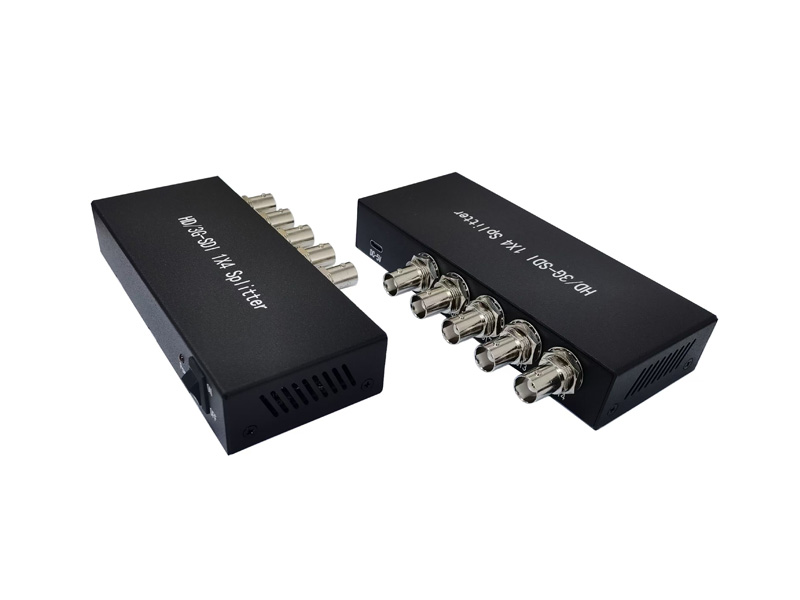

HD/3G-SDI 1x4 Splitter

Model: YC03

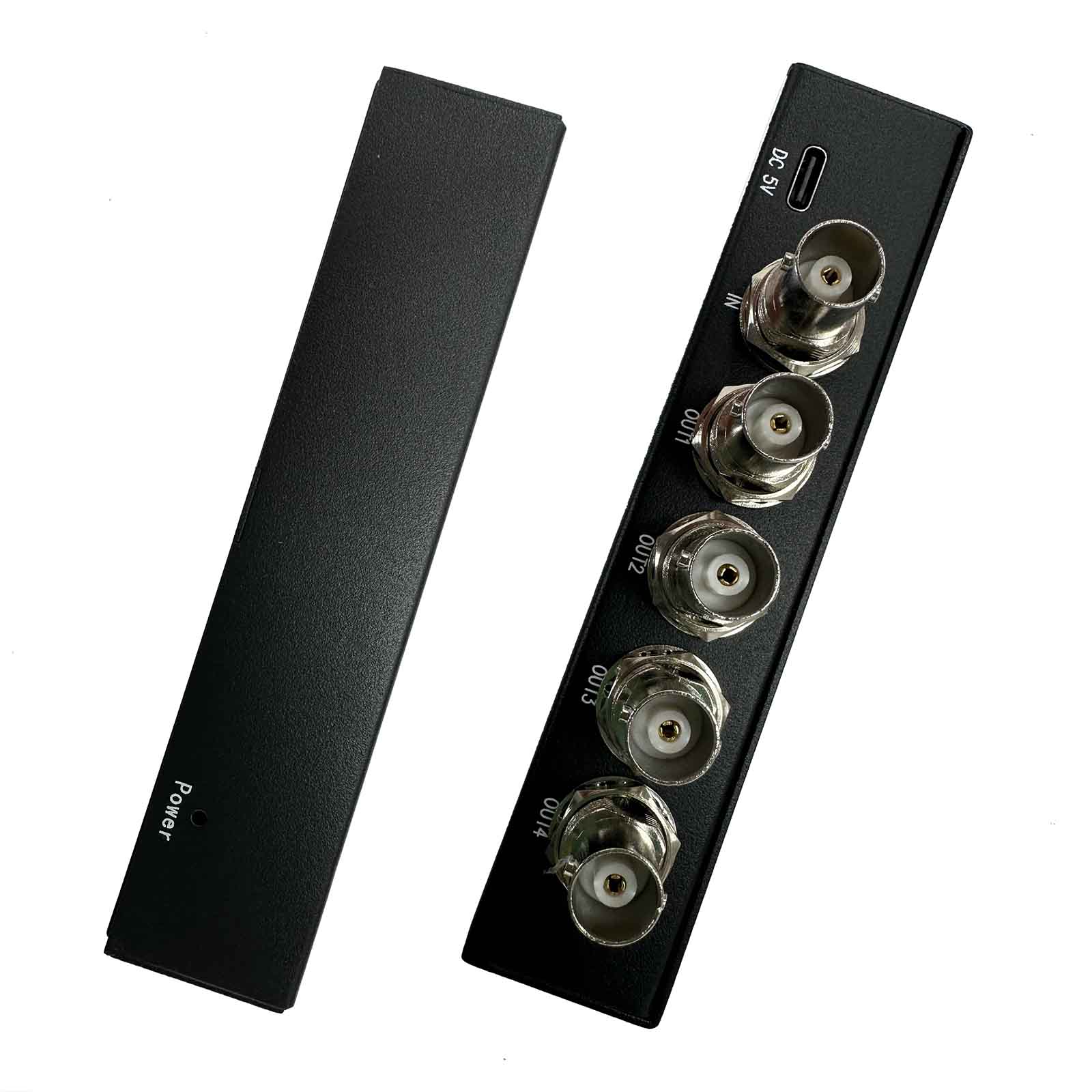

Input Port: 1 × BNC SDI

Output Ports: 4 × BNC SDI

SDI Standards Supported:

SMPTE424M (3G-SDI)

SMPTE292M (HD-SDI)

SMPTE259M-C (SD-SDI)

Supported SDI Signal Formats: SD-SDI, HD-SDI, 3G-SDI

Supported Data Rates: 143 Mbps to 2970 Mbps

Impedance: 75Ω

Input Resolutions Supported:

480i\@60Hz, 576i\@50Hz

720p\@50Hz, 720p\@60Hz

1080i\@50Hz, 1080i\@60Hz

1080p\@24/25/30/50/60Hz

Output Resolutions: Same as input (480i to 1080p\@60Hz)

Power Supply: Type-C (cable included)

Operating Temperature: 0°C \~ 60°C

Application Scenarios:

  * Broadcasting studios

  * Surveillance monitoring

  * Multimedia classrooms

  * Conference rooms

  * Live event AV distribution
