Product Features

* ✅ **Ultra HD 4K60 Transmission** — Supports resolutions up to 3840x2160\@60Hz, downward compatible with 1080p.

* ✅ **50M Long-Distance Extension** — Transmits HDMI with USB and audio up to 50 meters using a single CAT6 cable.

* ✅ **Lossless & Low-Latency** — Zero image compression delay with professional-grade signal integrity.

* ✅ **HDMI 2.0 + USB 2.0 Protocols** — Full support for modern AV and USB device standards.

* ✅ **6-Port USB 2.0 Hub** — Supports mouse, keyboard, printers, flash drives, and other USB devices.

* ✅ **3.5mm Audio Output + MIC Input** — Ideal for sound monitoring or intercom setups.

* ✅ **Wide Compatibility** — Plug & play with Windows, MacOS, Linux systems.

* ✅ **Robust Engineering Design** — Withstands industrial environments with -20°C to 70°C operating temperature.

Packing List:

* 1 × HDMI KVM Transmitter (TX)

* 1 × HDMI KVM Receiver (RX)

* 2 × 12V DC Power Adapters

* 1 × User Manual

Technical Specifications Table:

| **Parameter**                             | **Details**

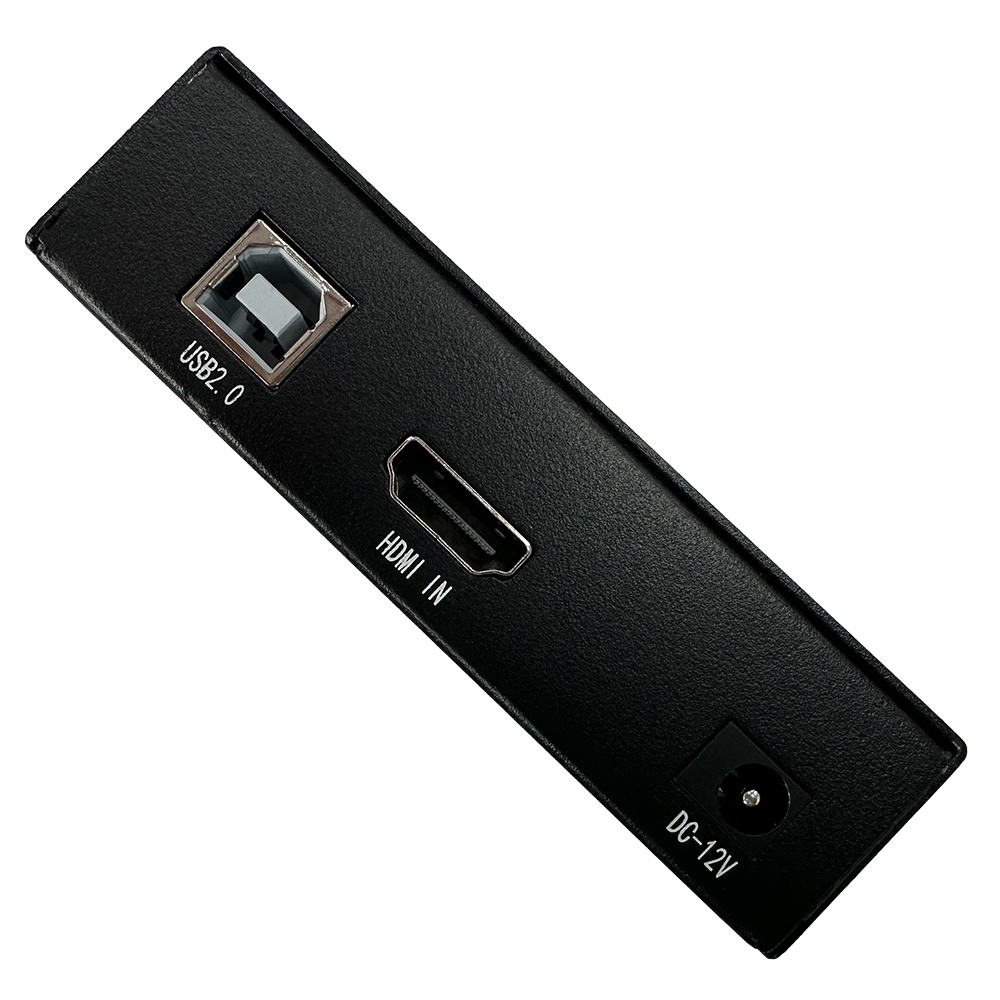

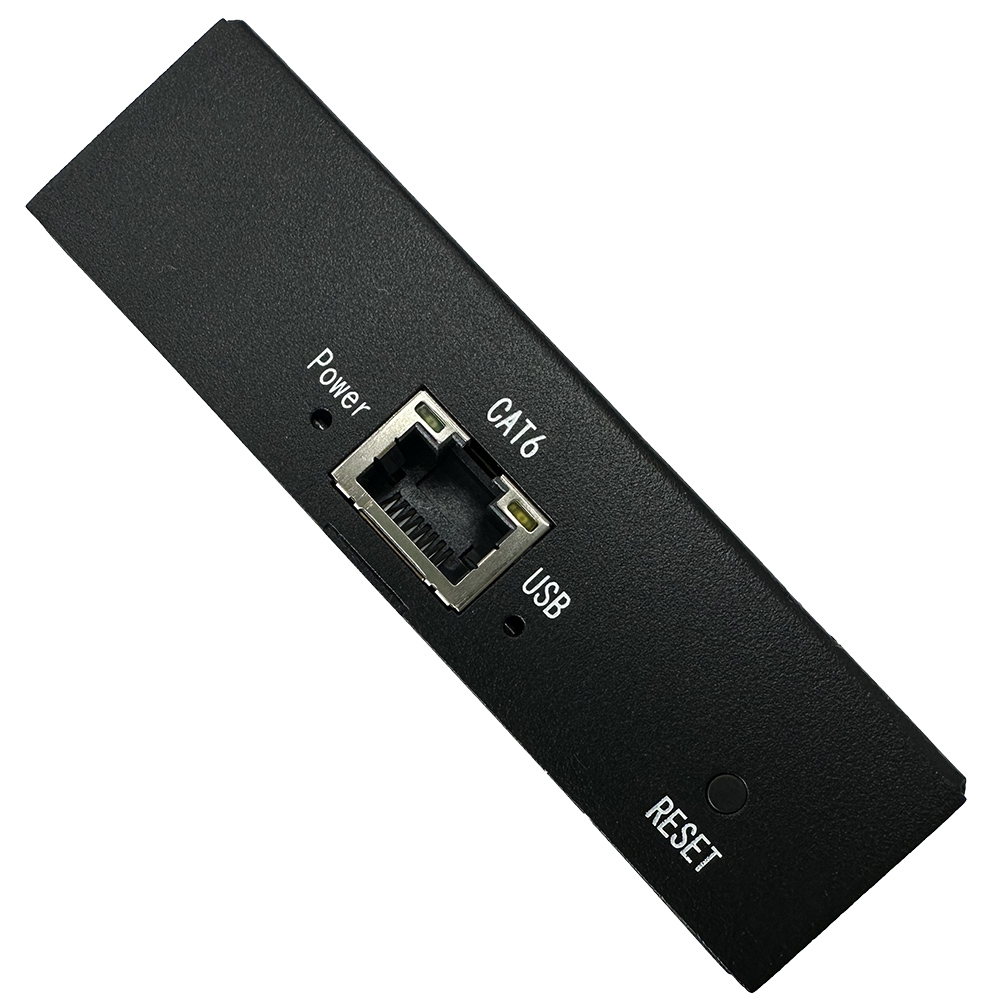

| **Input Interfaces**                    | HDMI x1, USB x1, RJ45 Ethernet Port x1

| **Output Interfaces**                 | HDMI x1, USB2.0 x6, RJ45 x1, 3.5mm Audio Out x1, 3.5mm MIC In x1

| **Supported Resolutions**         | 3840x2160\@60Hz, 1920x1080\@60Hz (downward compatible)

| **Supported Protocols**             | HDMI 2.0, USB 2.0

| **Ethernet Cable Type**              | CAT5/5e/6 UTP or STP

| **Max Transmission Distance**   | 50 meters (CAT6 cable, KVM with 4K60Hz)

| **Audio Output**                        | 3.5mm jack

| **Microphone Input**                 | 3.5mm jack

| **Power Supply**                        | DC 12V adapter (included)

| **Operating Temperature**        | -20℃ to 70℃
