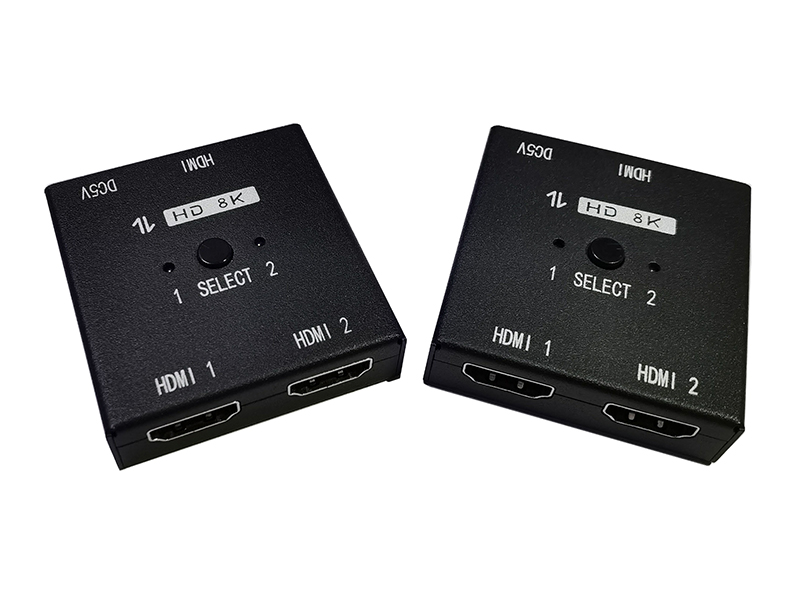

Upgrade your display setup with this Bidirectional HDMI 2.1 Intelligent Switcher, which supports both HDMI signal splitting (1 input to 2 outputs) and switching (2 inputs to 1 output). Designed for high-performance use, it supports 8K ultra-high-definition resolution, ultra-fast refresh rates up to 240Hz, and ensures seamless switching with a simple one-button operation. Ideal for gaming, streaming, professional AV environments, or home theater systems.

Technical Specifications

Model: YC04

HDMI Input Interface: HDMI ×1

HDMI Output Interface: HDMI ×2

Switching Modes: 1-in-2-out / 2-in-1-out (bidirectional HDMI switch and splitter)

HDMI Protocol: HDMI 2.1 (backward compatible with HDMI 2.0/1.4)

Supported Resolution: Up to 7680×4320 (8K UHD)

Refresh Rate Support: 8K @ 60Hz / 4K @ 144Hz / 2K @ 144Hz / 1080P @ 240Hz

Total Bandwidth: 48Gbps – Ensures fast and stable data transmission

Switching Method: Manual one-button switch with LED indicators

LED Indicators: Displays active port (Device 1 or Device 2)

Power Supply: Type-C port (included cable) – provides enhanced stability, supports high-power devices

Operating Temperature: 0°C \~ 55°C

Package Contents:

1 × HDMI 2.1 Bidirectional Switch/Splitter (Model YC04)

1 × Type-C Power Cable

1 × User Manual
1 × Packaging Box
