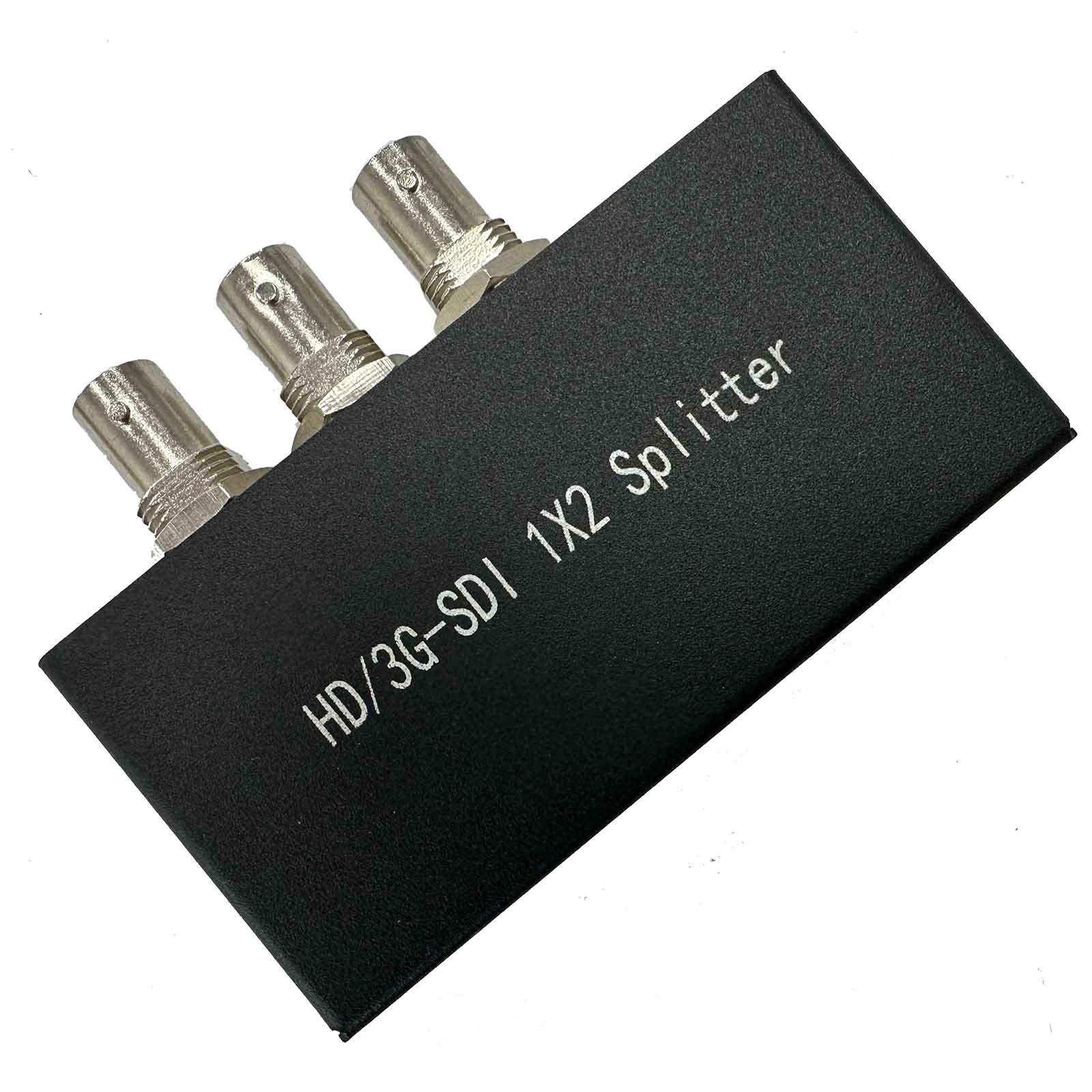

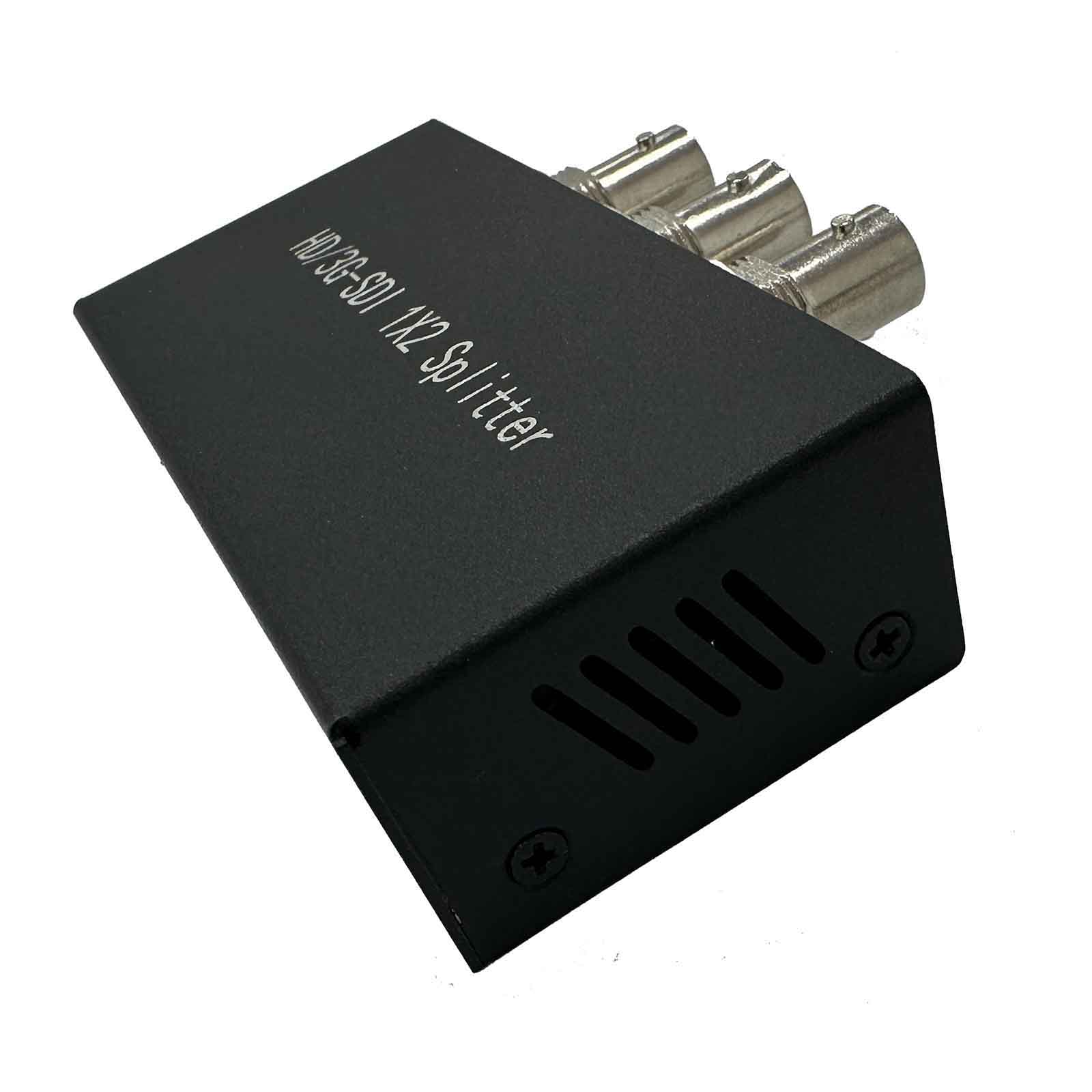

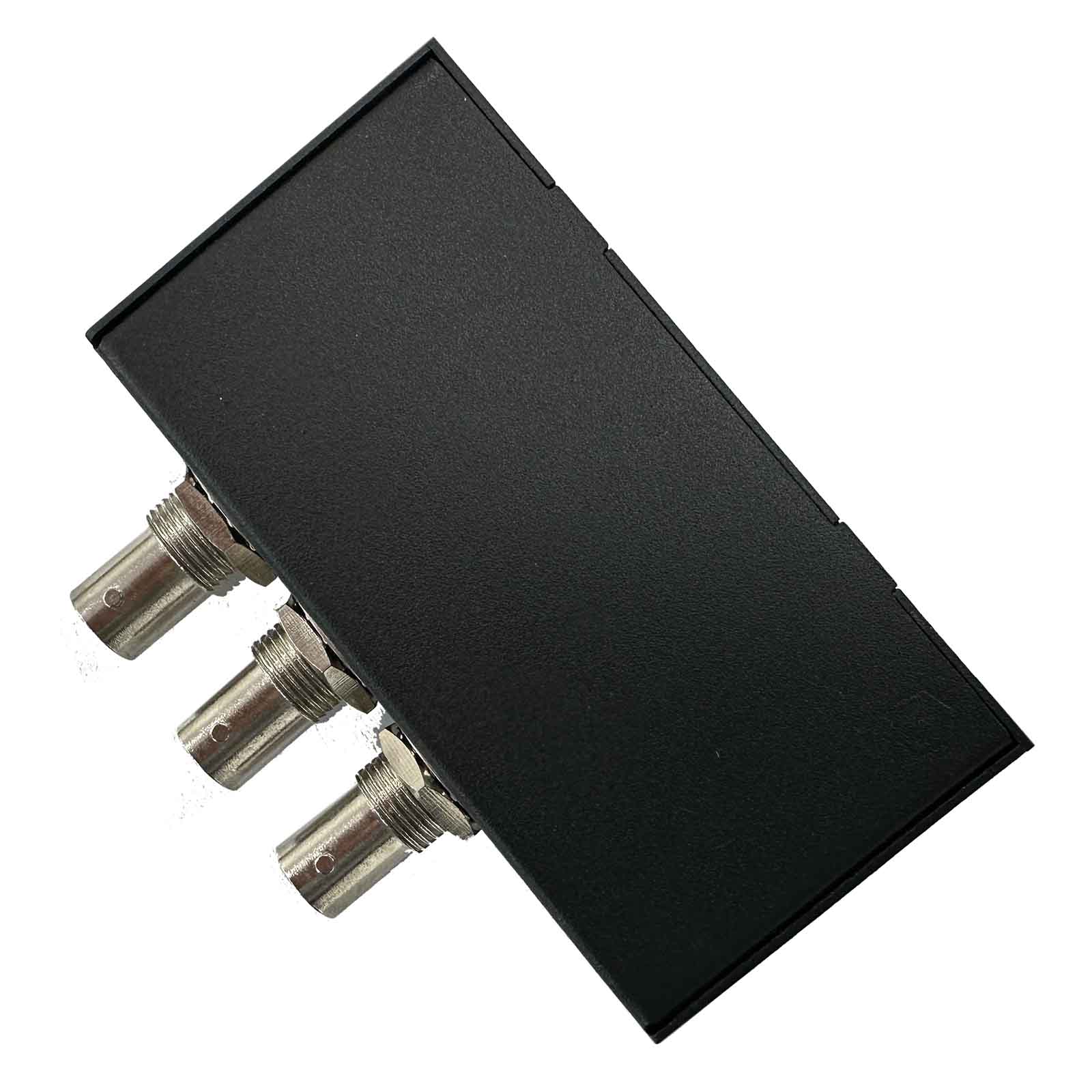

Model: YC01

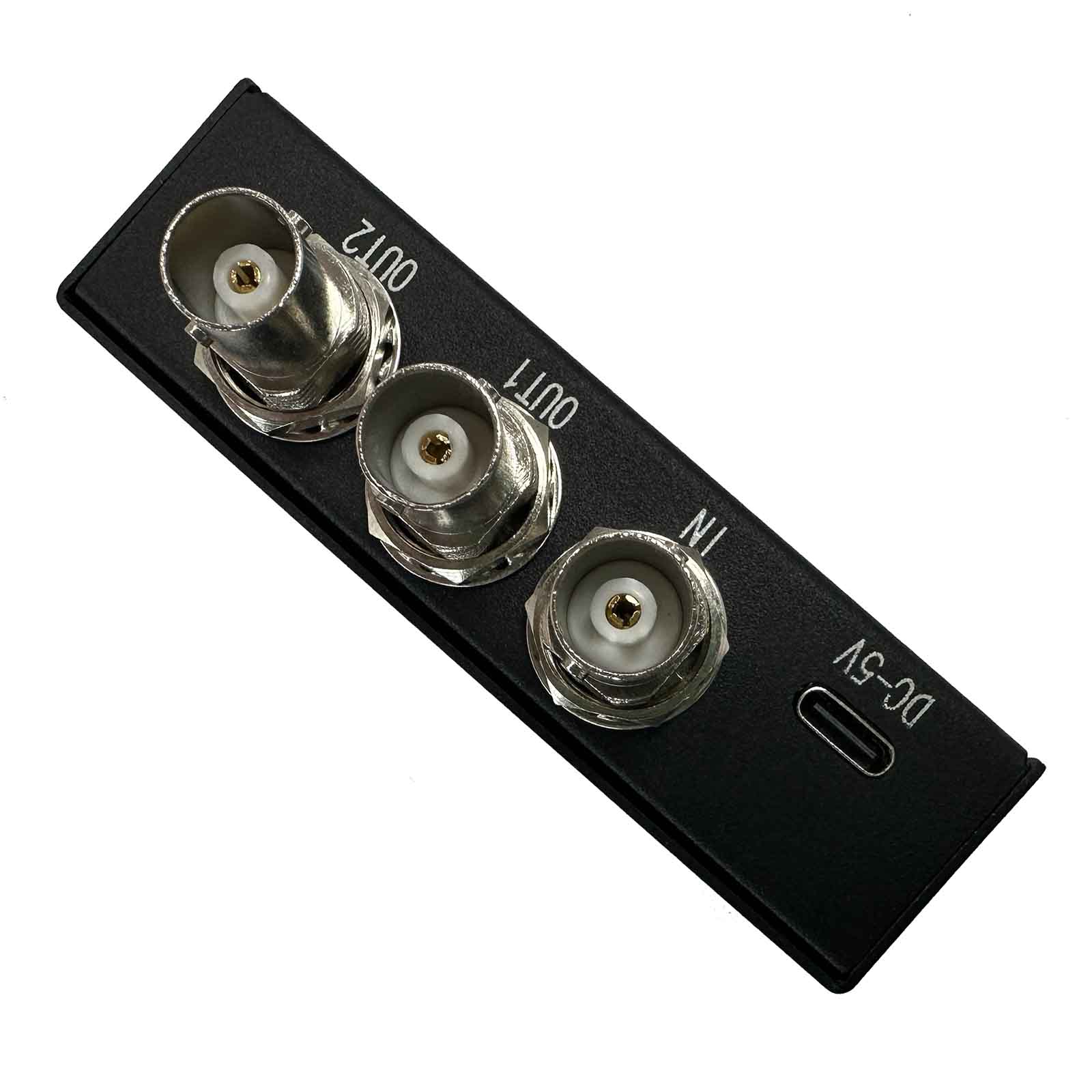

SDI Input Interface: 1 × BNC SDI

SDI Output Interfaces: 2 × BNC SDI

SDI Standards: SMPTE424M, SMPTE292M, SMPTE259M-C

Supported SDI Formats: SD-SDI, HD-SDI, 3G-SDI

Supported Data Rates: 143–2970 Mbps

SDI Impedance: 75Ω

Input Resolutions:

480i\@60Hz, 576i\@50Hz

720p\@50/60Hz

1080i\@50/60Hz

1080p\@24/25/30/50/60Hz

Output Resolutions: Matches input (480i to 1080p\@60Hz)

Power Supply: Type-C (Cable included)

Operating Temperature: 0°C – 60°C

Use Cases:

  * Broadcast studios

  * HD surveillance systems

  * Conference AV systems

  * Live video production

  * Video wall distribution
