Specifications Description

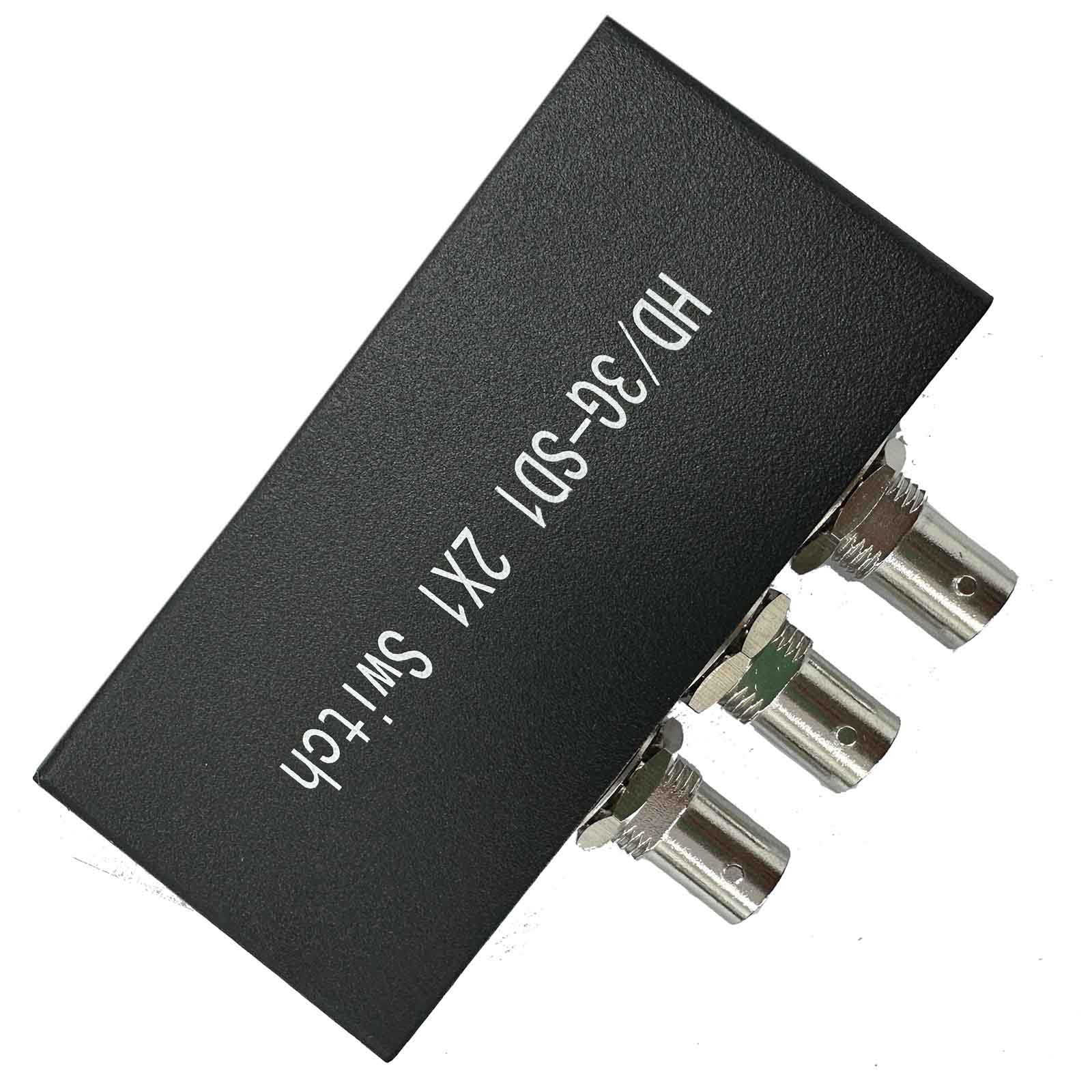

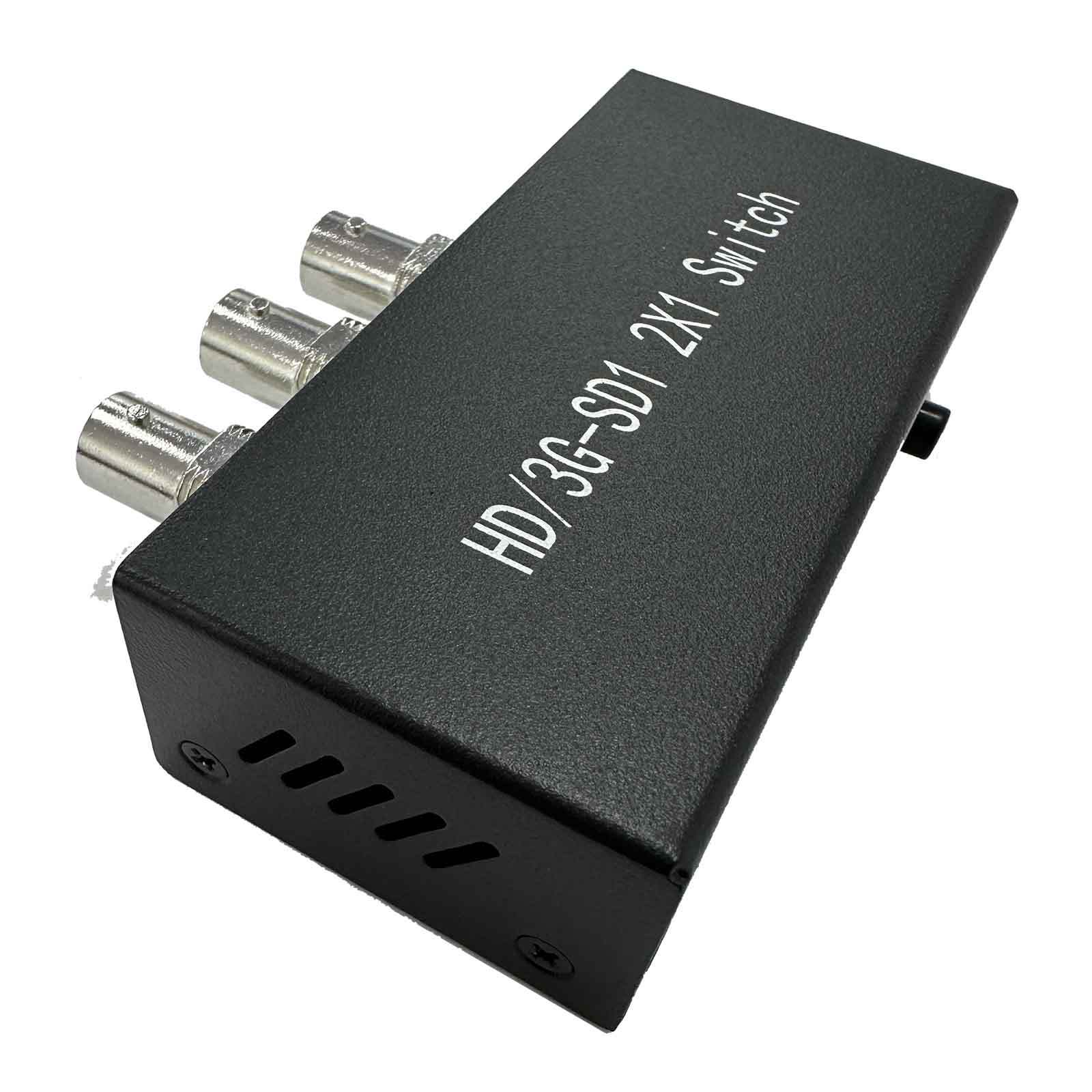

Product Name: HD/3G-SDI 2X1 Switcher
SDI Input Interface: 2 × BNC (SDI)
SDI Output Interface: 1 × BNC (SDI)
SDI Formats Supported:
SD-SDI, HD-SDI, 3G-SDI
Fully compatible with SMPTE 424M, 292M, 259M-C standards
Supported SDI Rates: 143 Mb/s – 2970 Mb/s
Input Resolutions:
480i\@60Hz, 576i\@50Hz
720p\@50/60Hz
1080i\@50/60Hz
1080p\@24/25/30/50/60Hz
Output Resolutions:
Matches input (480i to 1080p\@60Hz)
Impedance: 75Ω
Signal Output Amplitude: 800mVp-p

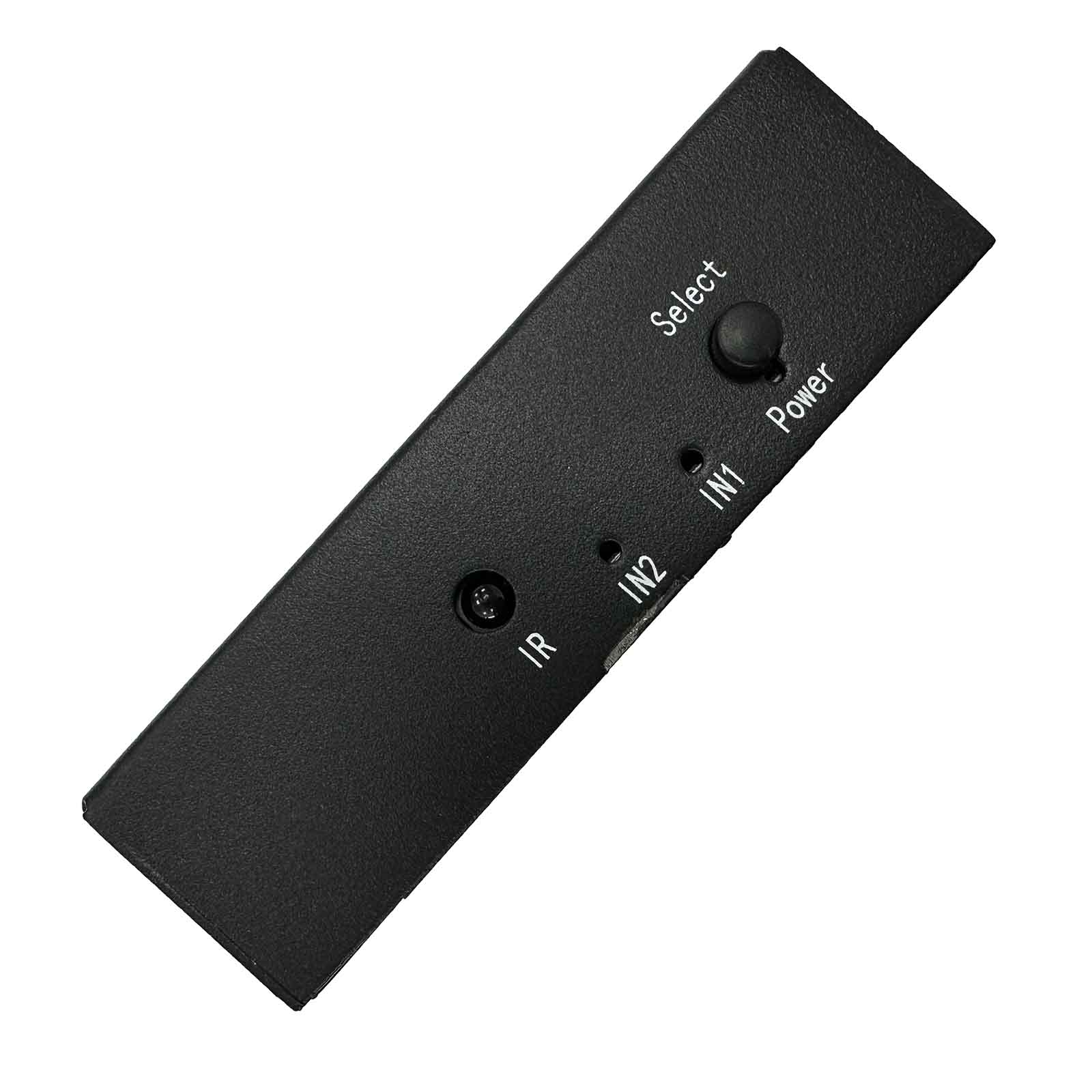

Switching Method:
Manual button switch
Infrared remote control
Power Supply: Type-C (cable included)
LED Indicators: Shows active input port (1/2)
Operating Temperature: 0°C to 60°C
Applications:
* TV Broadcast rooms
* Security surveillance centers
* Conference rooms
* Live production setups
* Multimedia classrooms & training halls
